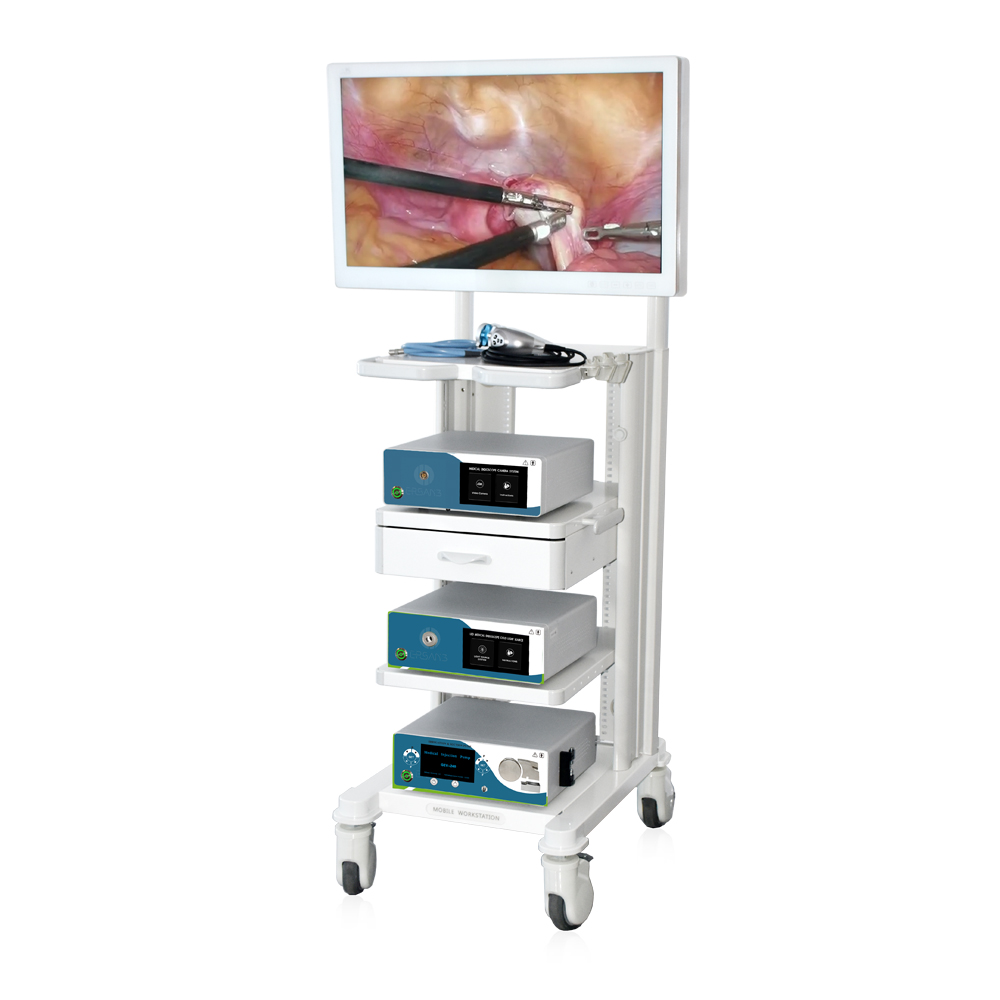

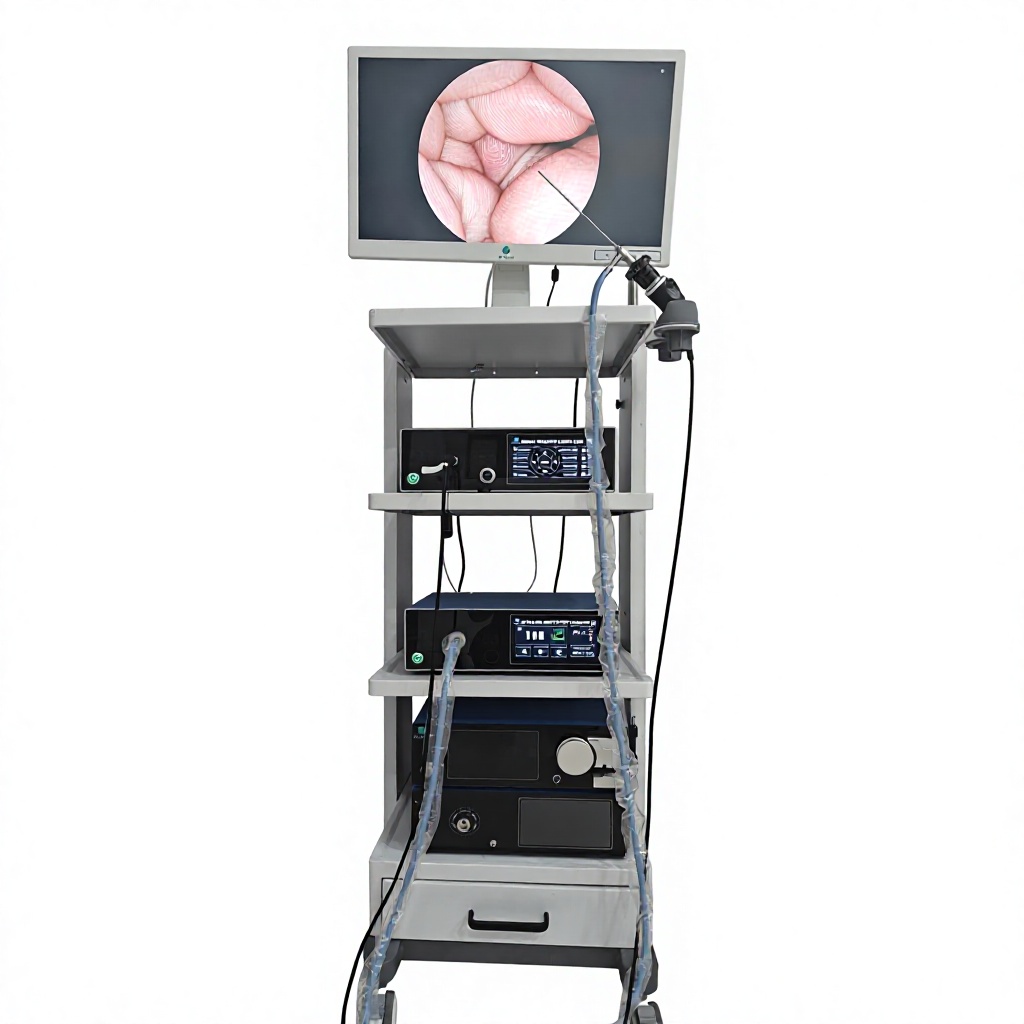

Medical endoscope camera is a medical imaging device used to provide access, illumination, and observation or manipulation of body cavities, hollow organs, and body ducts during endoscopic treatment.
Medical endoscope camera is a medical imaging device used to provide access, illumination, and observation or manipulation of body cavities, hollow organs, and body ducts during endoscopic treatment. Medical endoscopes enter the body through small incisions in natural cavities or minimally invasive surgeries to help doctors diagnose diseases after observation, biopsy pathological diagnosis, surgery or assist in the implantation of therapeutic artificial products.
| Camera | 9,000,000 pixels 4*1/2.8"CMOS |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal illumination | 0.5Lux |
| Video output | HDM!2.0/SDl (4K Ultra HD output) DVl, USB3.0 |
| Camera cable | 2.8m/Length customized |
| Power supply | AC85~264VAC |
| SNR | 50dB |
| Scanning system | Line by line scanning |
| Store | internal hard disk or USB storage |
| Language | Chinese, English, Russian, Japanese and Spanish can be switched |

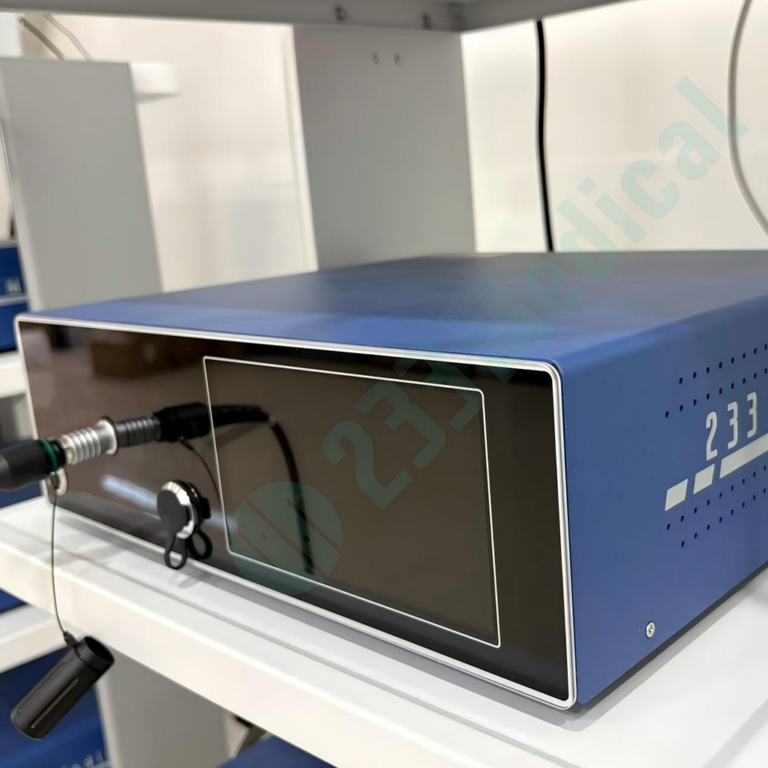

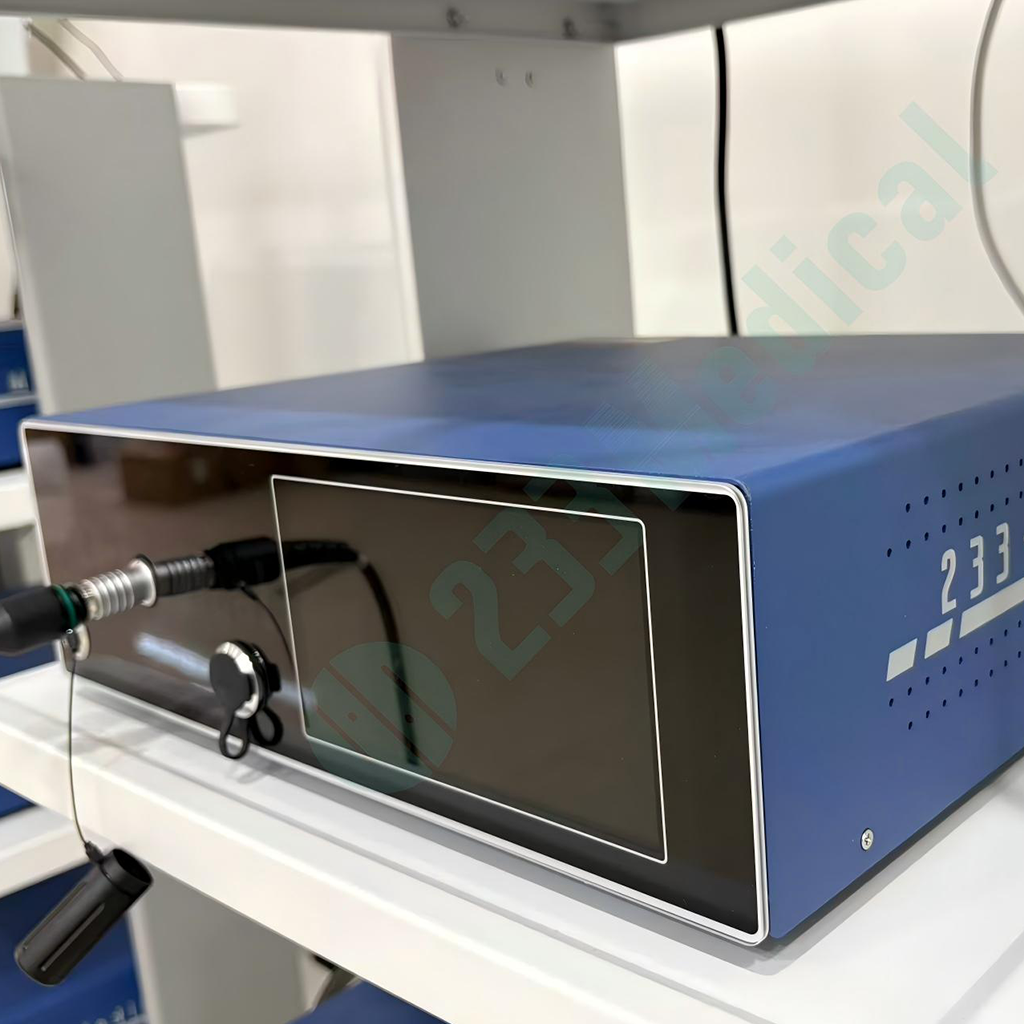

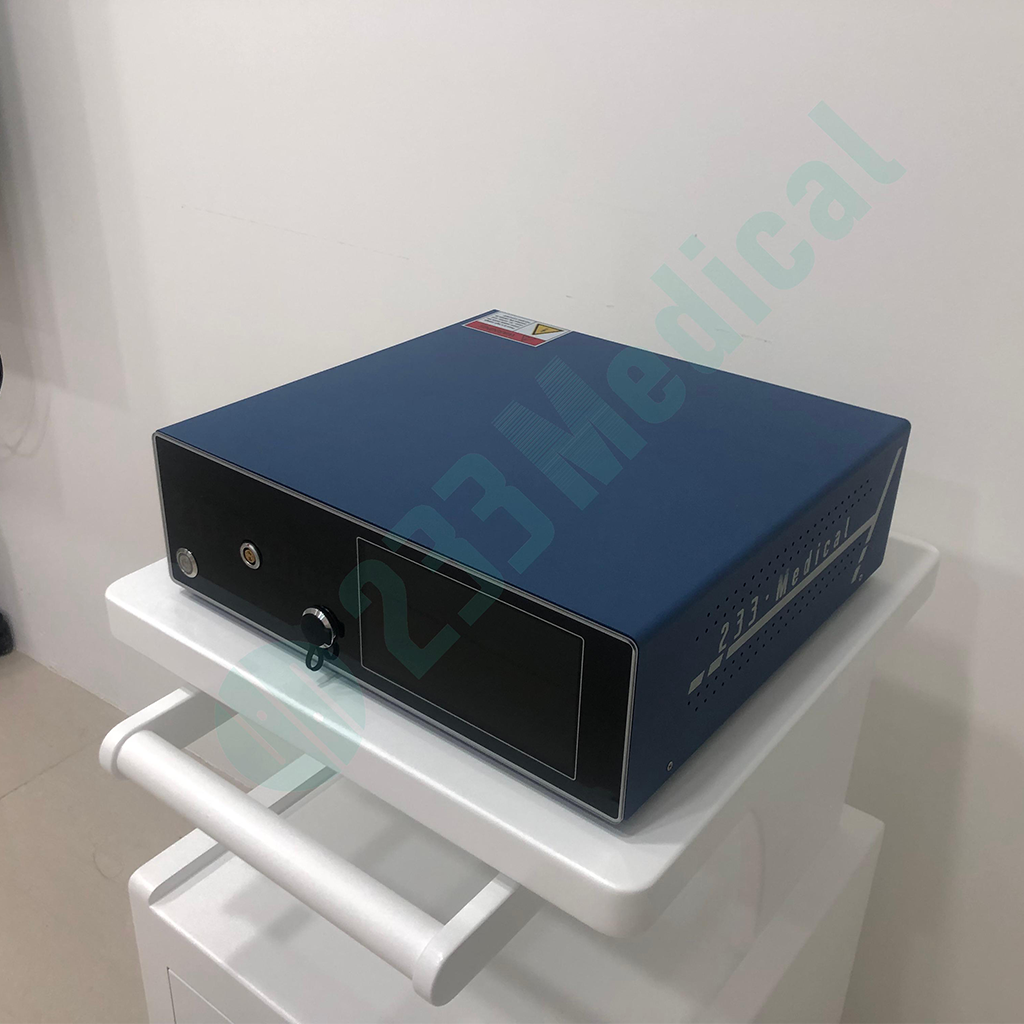

| Model | GEV-610/GEV-620 |
| Camera | 9,000,000 pixel 3*1/2.8"CMOS |
| Resolution | 3840(H)*2160(V)e |
| Definition | 2100 Lines |
| Minimum illumination | 0.3Lux |
| Video output | HDMI2.0/3G-SDI(4K UHD output) DVI,USB3.0*2,LAN |
| Shutter speed | 1/60~1/60000(NTSC),1/50~50000(PAL) |
| Camera cable | 2.8m/Length customizede |
| Power | 85~264VAC |
| Model | HJ-30(Touch screen)e |
| Output power | 140W120W/100W |
| Long life | 250000Hours |
| Color temperature | 3000-7000k |
| Brightness | ≥1600000lx |
| Dimming mode | Touch button, PwM can set a variety of working curves, Automatic temperature detection and control, color rendering index ≥93 |
| Light cable | F4.8,3000mm, autoclavable |
Medical 4k monitor
Flexible, simple and convenient operation; It is convenient for teaching and clinical case discussion.
Minimally invasive surgery minimizes the patient's discomfort and facilitates the patient's close cooperation.
It improves the diagnostic ability and provides reliable data for teaching and scientific research.
Remote clinical disease consultation.
The effect is intuitive, the recovery is fast, the hospitalization time is short, and the cost is saved.
Neuroendoscopy
Otoscope, nose scope, laryngoscope, support laryngoscope, fiber nose and throat scope, bronchoscope, etc.
Thoracic laparoscopy, etc.
Hysteroscope, laparoscope, ductoscope, electrotomy, amnioscope, etc.
Hysteroscope, laparoscope, ductoscope, electrotomy, amnioscope, etc.
Cystoscope, electroprostatoscope, choledochoscope, ureteroscope, percutaneous nephroscopy, etc.
Arthroscopy, foraminoscopy, knee arthroscopy, etc.

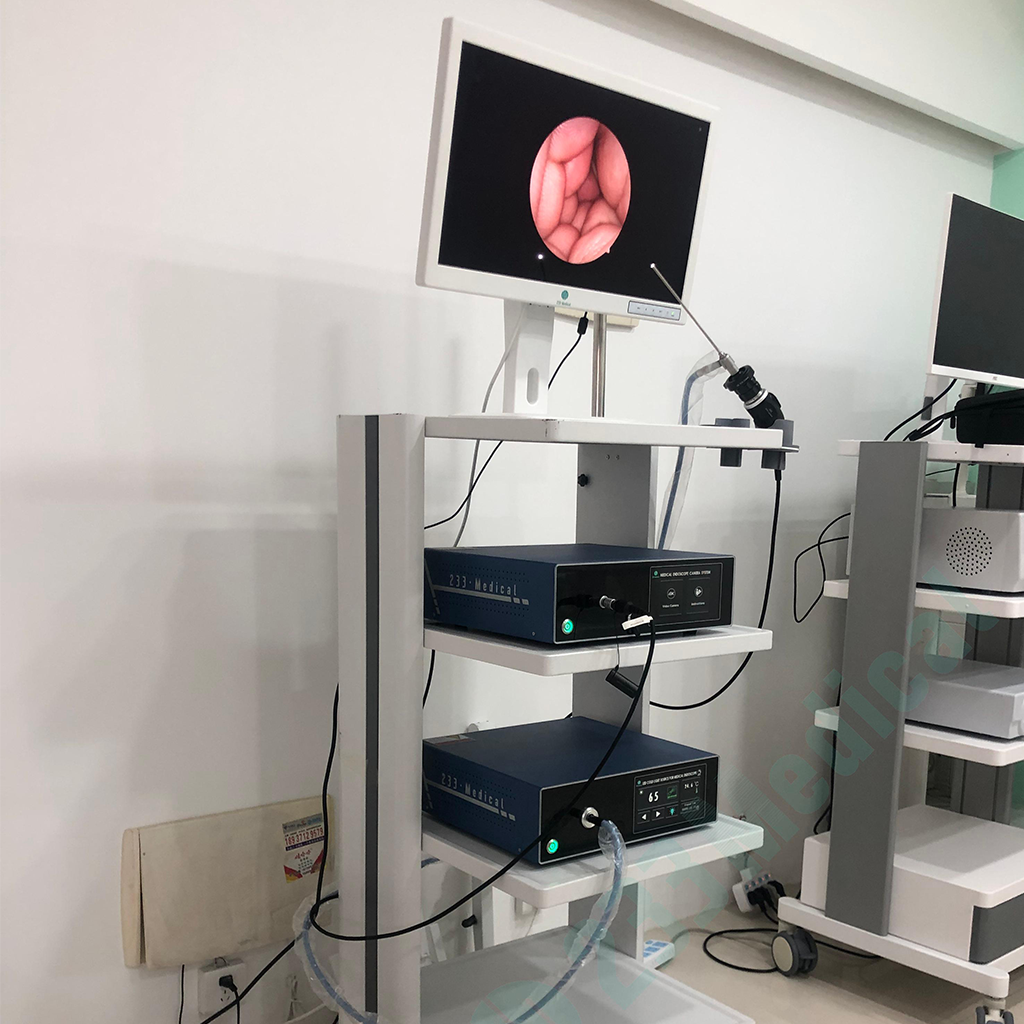

The endoscope camera connects the endoscope through the optical interface, converts the optical signal collected by the endoscope into a digital signal, which is input to the image processing host, and then processed by the image processing host and output to the monitor display image.
Delivery within 3-15 days after receipt of payment,delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. More details, leave us message by Whatsapp or Mails.
