C20 is a highly cost-effective portable ultrasound product,the instrument equipped with color blood flow, PW Doppler, 3D and 4D capabilities will exceed your expectations, built-in large capacity lithium to give you confidence.
C20 is a highly cost-effective portable ultrasound product,the instrument equipped with color blood flow, PW Doppler, 3D and 4D capabilities will exceed your expectations, built-in large capacity lithium to give you confidence. This reliable and affordable system will enhance general practice and is well suited to multiple clinical needs.
| Model | C20 Portable Full Digital Color Doppler Ultrasound Diagnostic System |
| Version | Windows7 |
| Support | 3D or 4D imaging |
| Battery | Built-in battery can work more than 90 minutes |

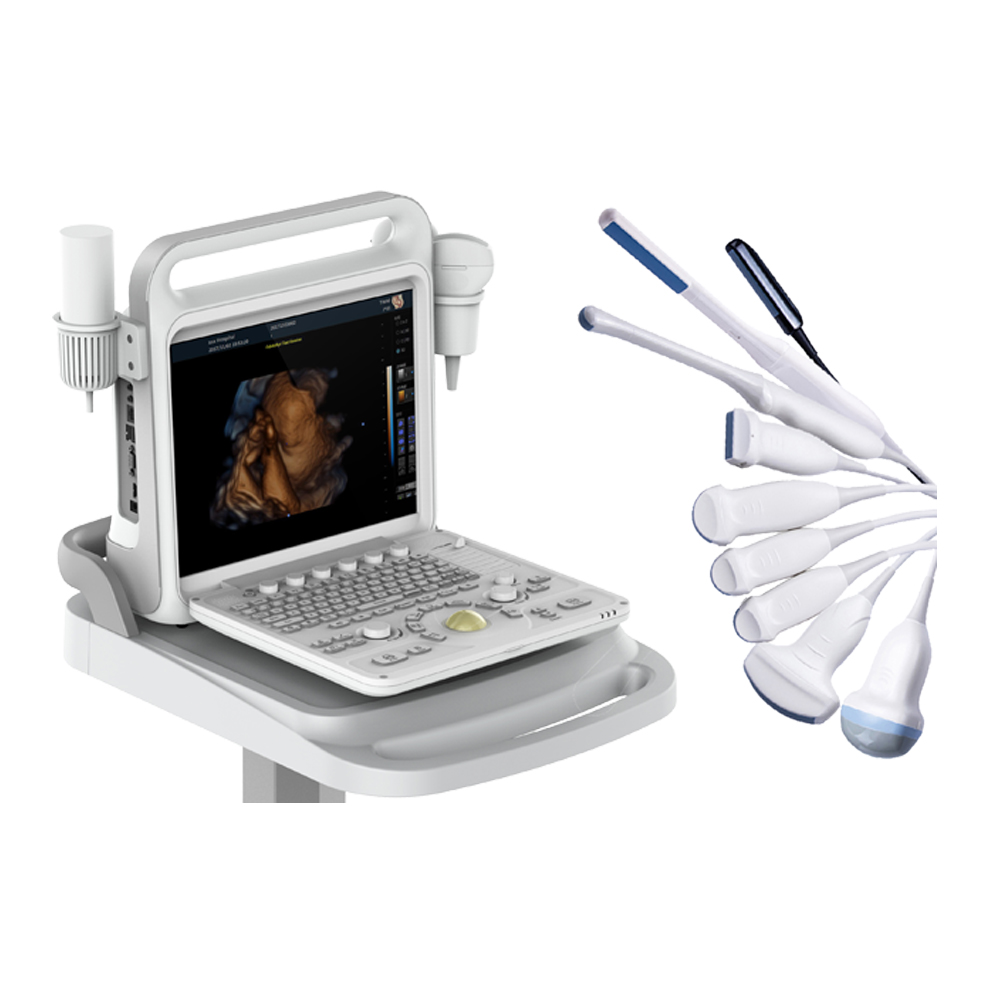

| Support probe | Convex\Linear\Cavity\Micro-convex\Rectal\Volume(4D) |

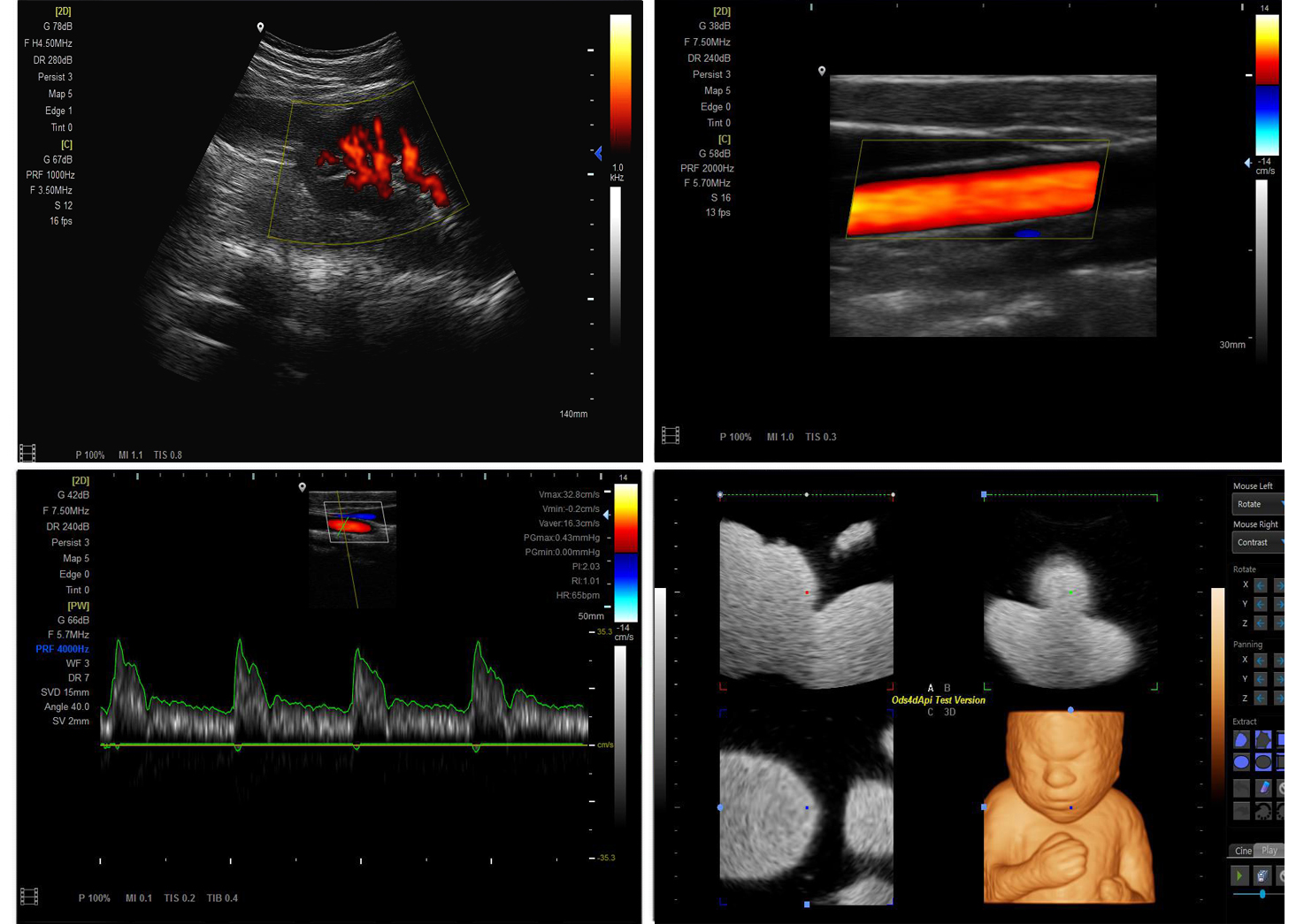

| Display Modes | B,B/B,4B,B+M,M,CFM,B+CFM,PDI,B+PDI,PW,B+PW,B+CFM+PW, Duplex and Triplex |
| E-zoom | magnify 2 times of real time image |
| Dynamic Range | 80~280dB adjustable |
| Focus Position | Focus mobility. 1,2,3 and 4-segments dynamic electron focusing |
| Image Processing | γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
| According to the user; pattern style preference, the parameter will be set up automatically and saved , Boot default this parameter. This default of parameter can modified in the menu. | |
| Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion |
| frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe | |
| Measuring Function | Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc. |
| Annotation Function | hospital name, patient; s name, age and gender |
| 64 body marks (with probe; position); | |
| Full-screen character annotation; Real-time clock display | |
| Puncture Guide | 3.5MHz convex array probe can display puncture guide line in B mode |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Image Polarity | left and right flip, black and white flip, up and down flip |
| Capacity Cine Loop | real time display 256 consecutive images which are memorized successively |
| Image Playback | series playback or check one by one |
| Cline Storage | 100、200、300、400、500 images |
| Output Interface | HDMI、VGA、DICOM、LINE、USB |
| Memory | ≥2GB |
| Hard drive | ≥256GB SSD |
| Operation System | Windows7 |
Sleek, streamlined and compact shape
Dedicated probe mounting slot
15 inch full screen design
Ultrasound guided puncture
Color-changing backlight key control panel
150 degree viewing angle
2 universal sensor connectors
256G SSD hard drive for storing large amounts of patient data
4400mAH rechargeable lithium battery
Shortcut menu knob efficiently optimizes image parameters
Numerous application modes to edit presets
Built-in editable report page, insert picture size, number adjustable etc.
User image parameters customize shortcut saving for personalized operations
Delivery within 3-15 days after receipt of payment, delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. For more details, leave us a message via Whatsapp, or Mail.
