Medical endoscope camera is a medical imaging device used to provide access, illumination, and observation or manipulation of body cavities, hollow organs, and body ducts during endoscopic treatment.
Medical endoscope camera is a medical imaging device used to provide access, illumination, and observation or manipulation of body cavities, hollow organs, and body ducts during endoscopic treatment. Medical endoscopes enter the body through small incisions in natural cavities or minimally invasive surgeries to help doctors diagnose diseases after observation, biopsy pathological diagnosis, surgery or assist in the implantation of therapeutic artificial products.
| Camera device | 2,000,000 Pixels 1/2.8"CMOSResolution:1920(H)*1080(V) |
| Definition | 1080 Lines |
| Minimal illumination | 0.3Lux |
| Video output | SDI, BNC, AOUT, AIN, DVI, HDMI, VGA, LAN, USB |
| Shutter speed | 1/60~1/60000(NTSC),1/50~50000(PAL) |
| Camera cable | 2.5m/Special lengths can be customized |
| Power supply | 85~264VAC |
| Language | Chinese, English, Russian, Japanese and Spanish, can be switched |
Flexible, simple and convenient operation; It is convenient for teaching and clinical case discussion.
Minimally invasive surgery minimizes the patient's discomfort and facilitates the patient's close cooperation.
It improves the diagnostic ability and provides reliable data for teaching and scientific research.
Remote clinical disease consultation.
The effect is intuitive, the recovery is fast, the hospitalization time is short, and the cost is saved.
Neuroendoscopy
Otoscope, nose scope, laryngoscope, support laryngoscope, fiber nose and throat scope, bronchoscope, etc.
Thoracic laparoscopy, etc.
Hysteroscope, laparoscope, ductoscope, electrotomy, amnioscope, etc.
Hysteroscope, laparoscope, ductoscope, electrotomy, amnioscope, etc.
Cystoscope, electroprostatoscope, choledochoscope, ureteroscope, percutaneous nephroscopy, etc.
Arthroscopy, foraminoscopy, knee arthroscopy, etc.

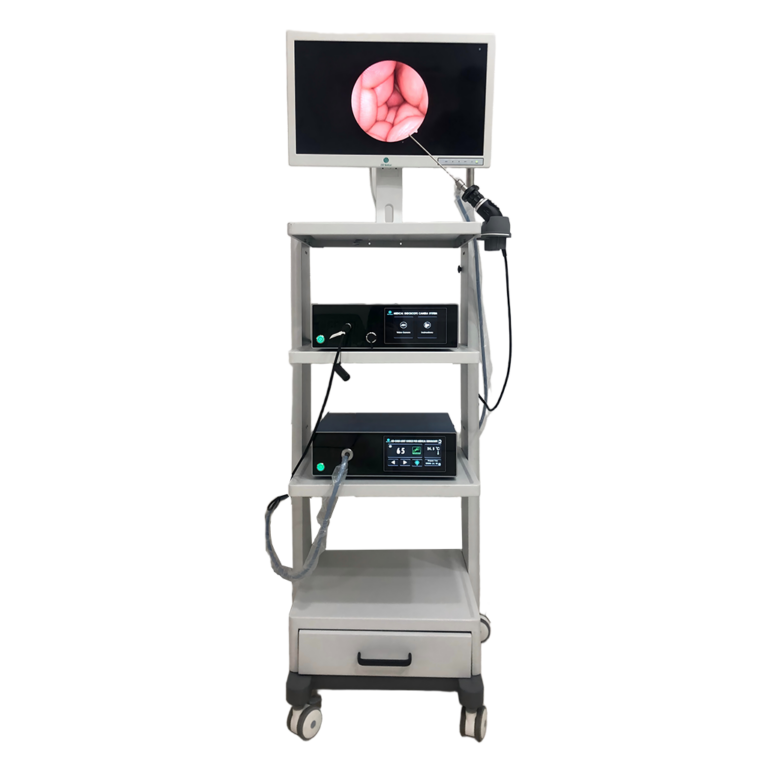

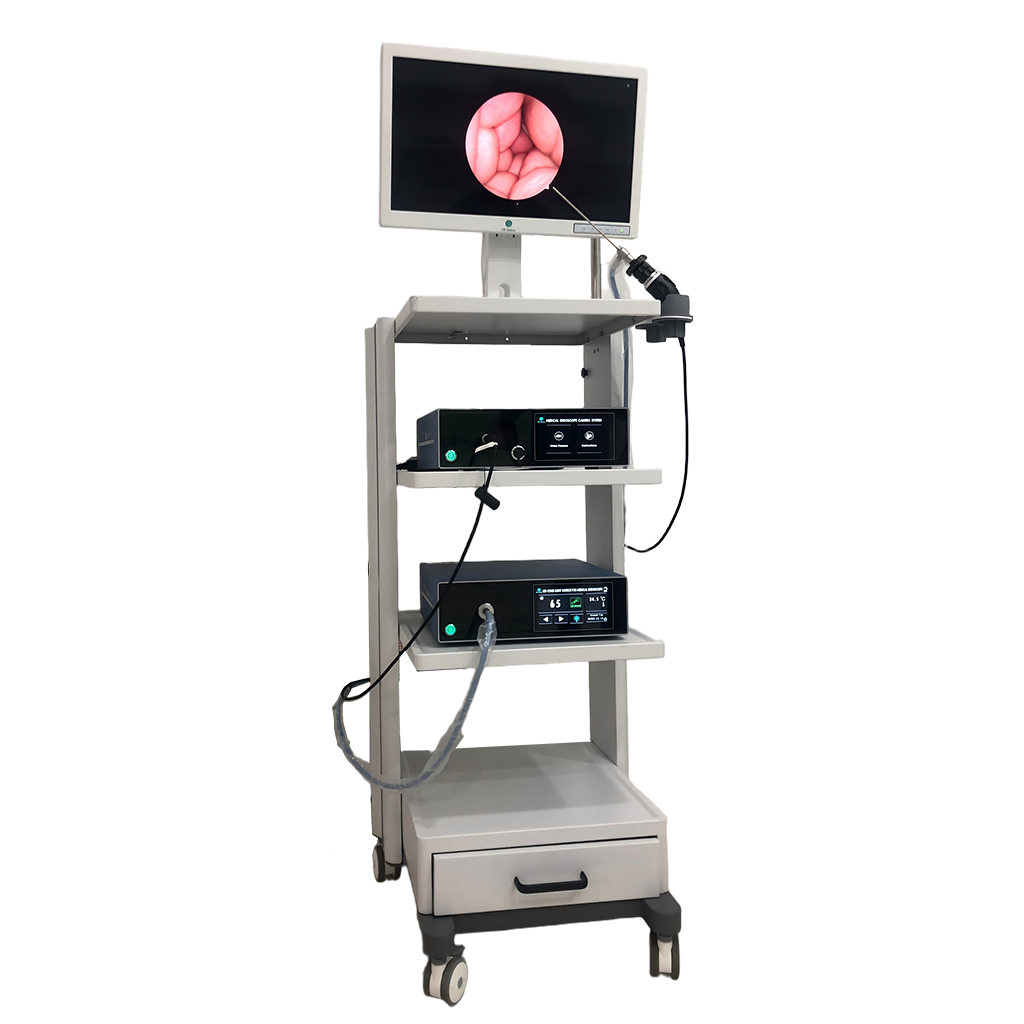

The endoscope camera connects the endoscope through the optical interface, converts the optical signal collected by the endoscope into a digital signal, which is input to the image processing host, and then processed by the image processing host and output to the monitor display image.
Delivery within 3-15 days after receipt of payment,delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. More details, leave us message by Whatsapp or Mails.
