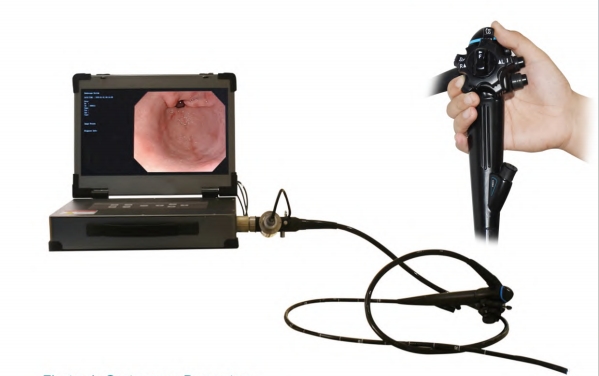

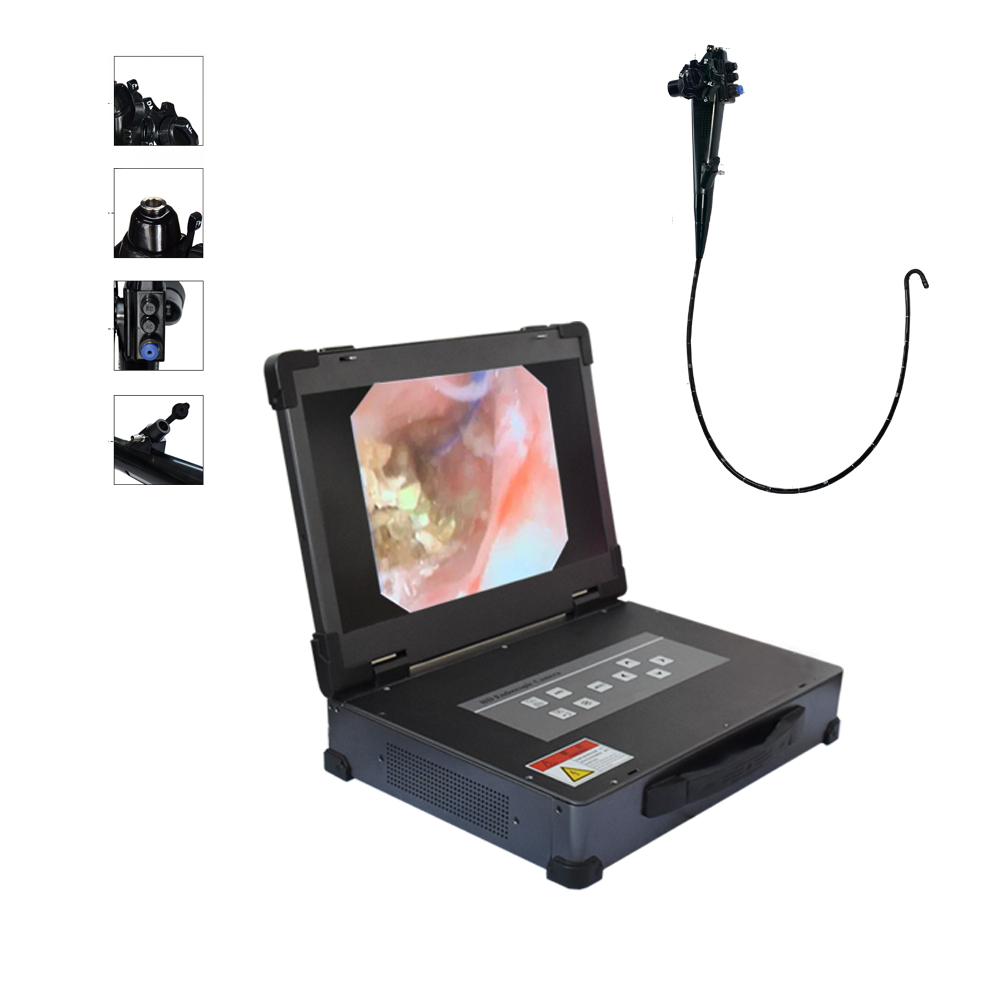

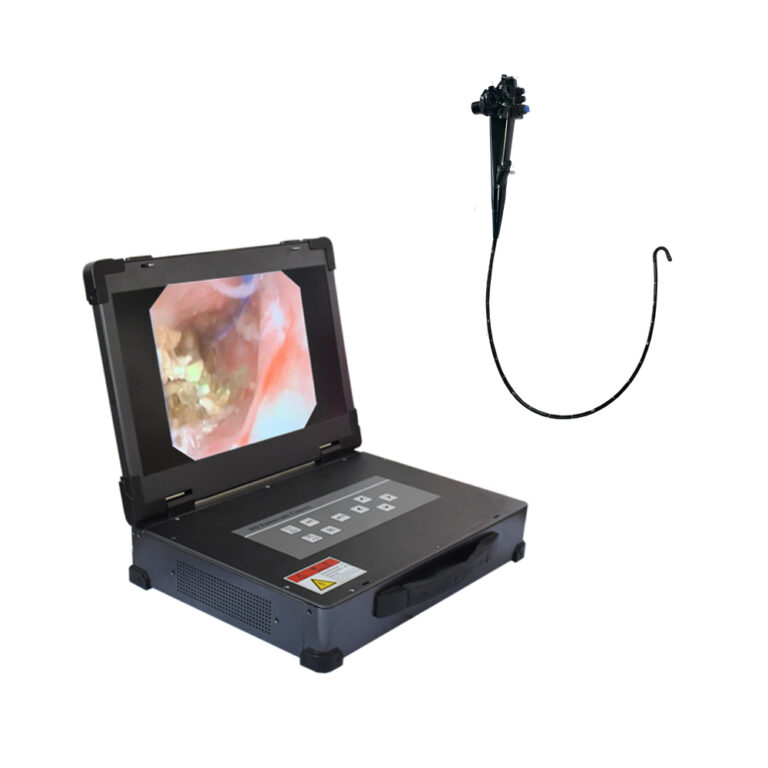

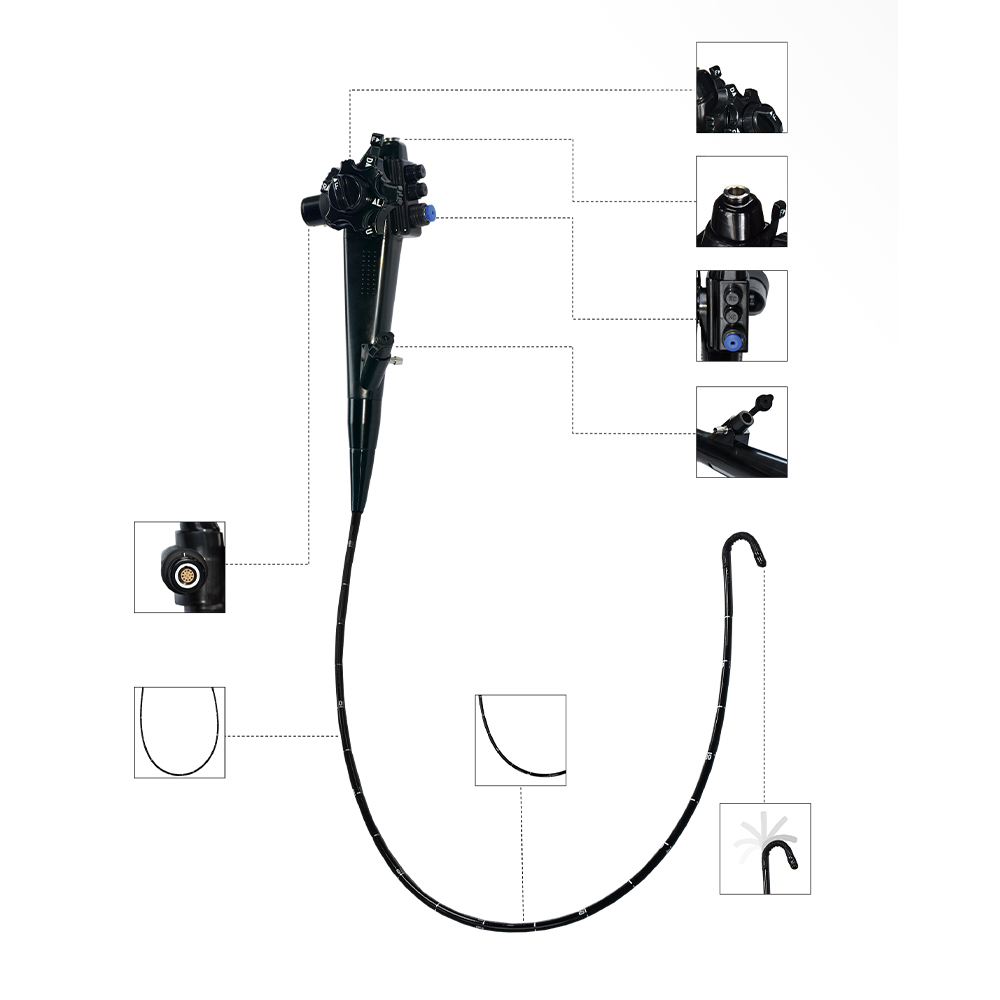

Electronic Gastroscope,Ergonomicdesign, light weight operation structure, reduce the operator's work intensity.
Electronic Gastroscope Parameters
Outer diameter of head end ≤ф9.8mm/Ф7.2mm/Ф6.0mm
Outer diameter of main hose ≤ф9.6mm /ф7.0mm/ ф5.8mm
Inner diameter of clamp pipe ≥ф2.8mm / ф2.4mm / ф2.4mm
Working length ≥1050mm
Total length ≥21335mm
Field of view ≥140 °(direct view)
Observation depth ≥23-100mm
Resolution ≥1 million pixels CMOS HD-1080P
Bending angle: ≥ 210° upward/≥100° downward/≥ 100° left /≥ 230° right maximum
Electronic Colonoscope Parameters
Outer diameter of head end ≤12.8mm/ ф9.8mm
Outer diameter of main hose ≤ф12.8mm/ ф9.6mm
Inner diameter of clamp pipe ≥Ф3.7mm / ф2.8mmWorking length ≥1330mm
Total length ≥1650mm
Field of view ≥140 °(direct view)
Observation depth ≥3-100mm
Resolution ≥1 million pixels CMOS HD-1080P
Bending angle :≥ 210° upward /≥100° downward /≥100° left /≥ 230° right maximum
Delivery within 3-15 days after receipt of payment,delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. More details, leave us message by Whatsapp or Mails.
